Jumbo Size Heat Strengthened Glass with SGP Interlayer

Jumbo Size Heat Strengthened Glass with SGP Interlayer: Structural Integrity for Large-Scale Applications

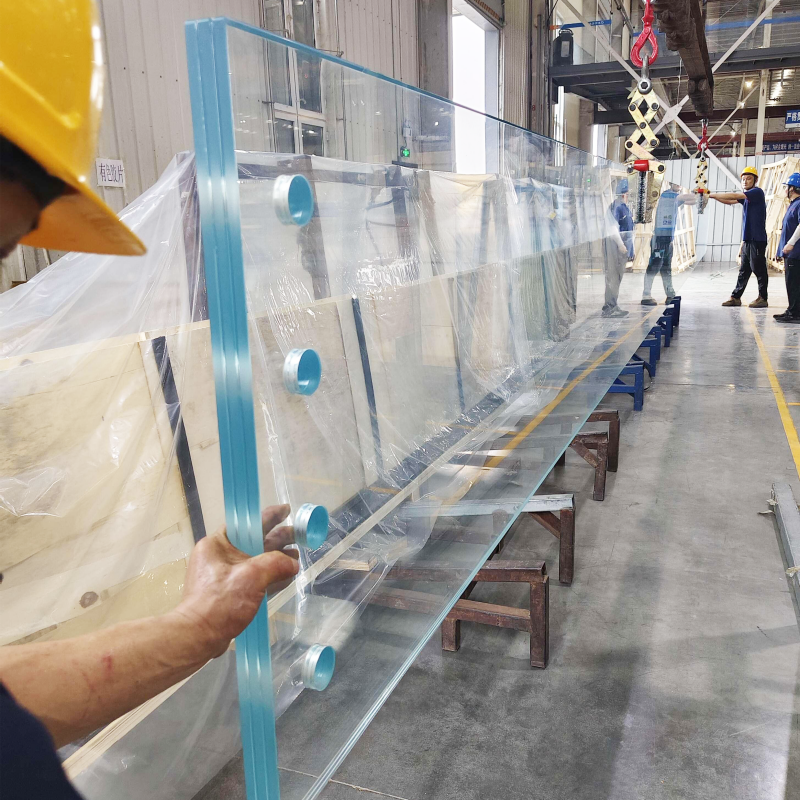

We manufacture jumbo size heat strengthened glass laminated with SGP (SentryGlas®) interlayer, engineered for architectural projects requiring exceptional structural performance in large-format panels. This solution combines the thermal durability of heat strengthened glass with the superior mechanical properties of SGP interlayer.

Core Product Advantages:

• Large Format Capacity: Produced in jumbo sizes to meet demanding architectural specifications




• Thermal Resilience: Heat strengthened base glass provides enhanced thermal stress resistance




• Structural Stiffness: SGP interlayer delivers 5x greater stiffness than conventional PVB




• Safety Performance: Maintains glass integrity under significant impact and load conditions

Technical Specifications:

• Maximum available sizes up to 18,000mm × 3,300mm

• SGP interlayer thickness: 0.89mm, 1.52mm, and 2.28mm options

• Heat strengthened glass thickness: 6mm to 19mm

• Custom configurations for specific structural requirements

Applications:

• Extra-large structural facades and curtain walls

• Oversized glass canopies and skylights

• Long-span glass barriers and balustrades

• Seismic-resistant glazing systems

Our engineering team provides comprehensive technical support for structural calculations, fabrication specifications, and installation guidance. Contact us for project-specific solutions and performance data
